1. To begin designing, login to your Foyr Neo account here: www.foyr.com



2. Click on the projects on your dashboard to edit them.









3. Once you have finished adding all the components to your design, and are ready to render the project, first click to 3D mode to set the view. ​

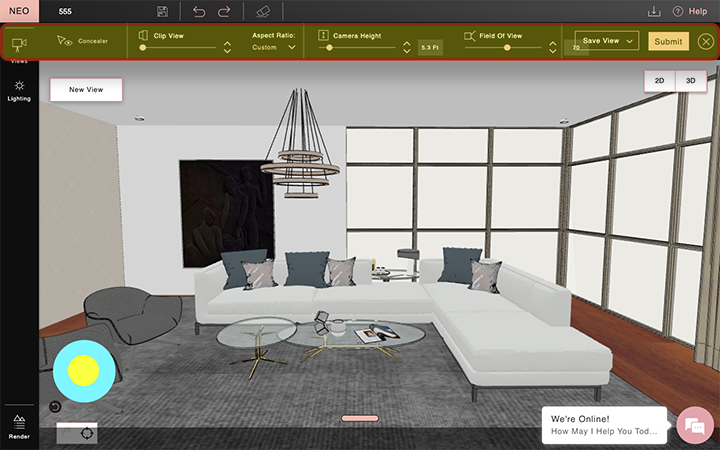

4. You can edit the view by choosing from the options in the context bar.

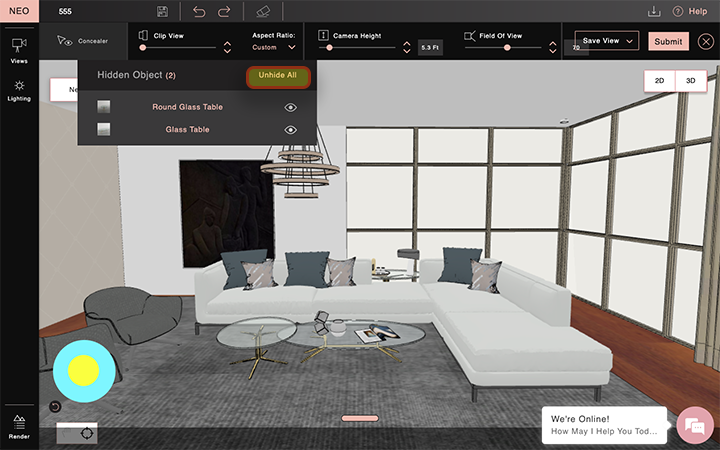

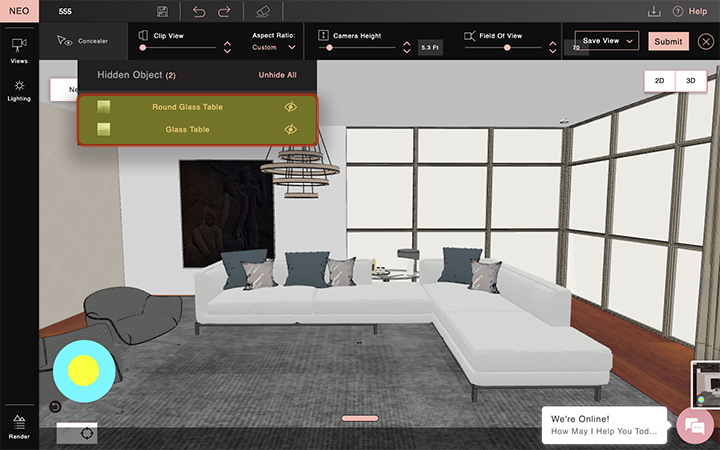

5. Click on the “Concealer” icon to hide components from the view. This keeps them in the original design, but they just don’t appear in the current view. ​

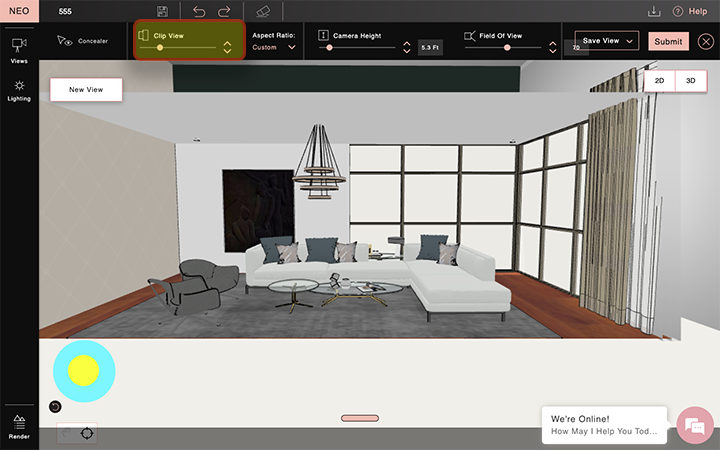

6. Use “Clip View” to crop exactly what part of the view you want to focus on by dragging the button on the bar to zoom in or out.




    ​

7. You can change the aspect ratio of the view by choosing from the preset options on the menu. ​

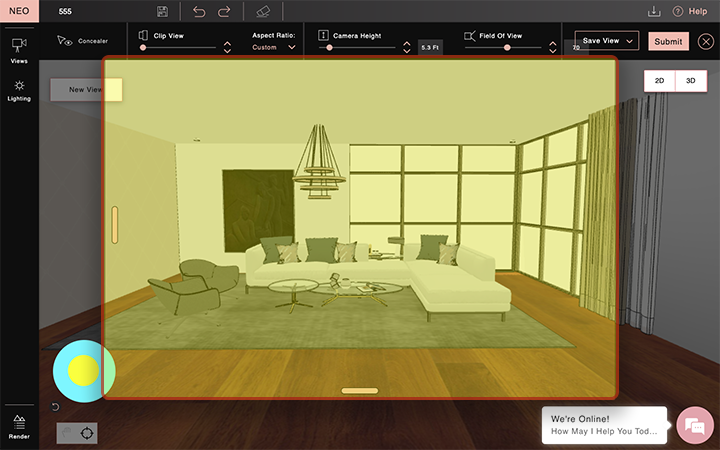

8. You can also clip the view by dragging the bars on the left and bottom of the design. What is seen inside the unshaded, lighter square inside the darker border is what the view will look like. ​



9. The camera height icon allows you to adjust the height of the camera for the view. You can do this either by dragging the button across the bar or by clicking the arrows next to the bar. ​





10. The height of the camera is displayed in feet in the text box next to the arrows. ​




11. Set the field of view from a number between 1-90 by either dragging the button across the bar or clicking on the arrows next to the bar. The ‘Field of View’ icon allows you to set the exact view desired to be rendered. ​

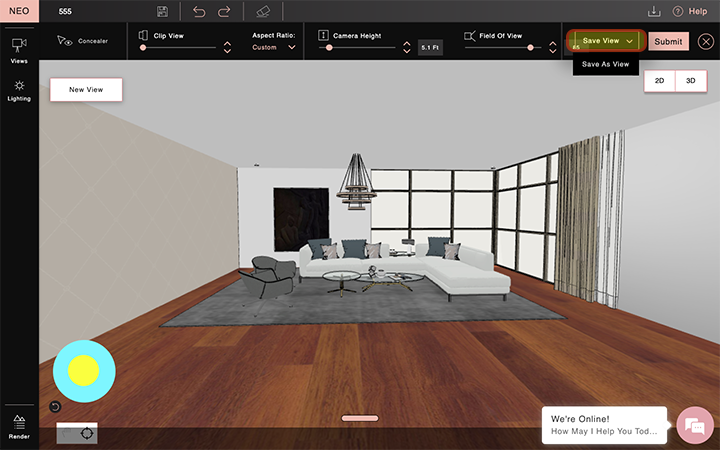

12. Once you have made all the changes, click on ‘Save View’ to save the view. You can save multiple views, with different names to avoid confusion. In this way, you can adjust your views while designing your 3D floor plan.

13.









This video explains about how a camera view is set up . You can see the above views from 0:39 in the video

And this is how you set up views that are ready to be rendered into stunning designs for your clients. Start designing now with Neo, the best 3D design software. For any questions, please contact us via the ‘Help’ section within Neo or write to us at connect@foyr.com.
