How to take Renders

1. Login to your Foyr Neo account on www.foyr.com . If you don't have an account, then you can get one easily by signing up.

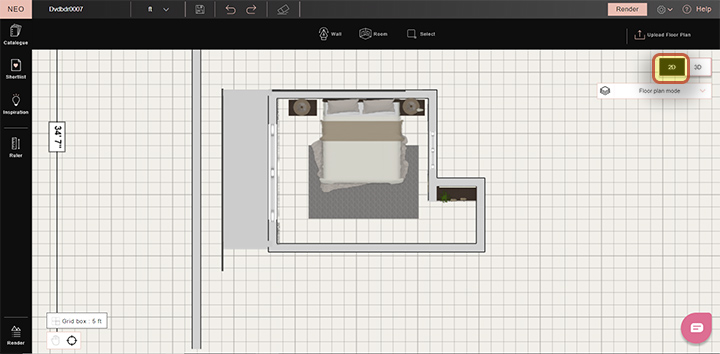

2. For 3D rendering, add the floor plan to your canvas editor, either by uploading your own floor plan sketch or selecting the floor plan from ‘Inspiration’.

3. Inspiration provides you with complete interior design models where you can edit or replace items, add or delete products, according to your choice and requirement

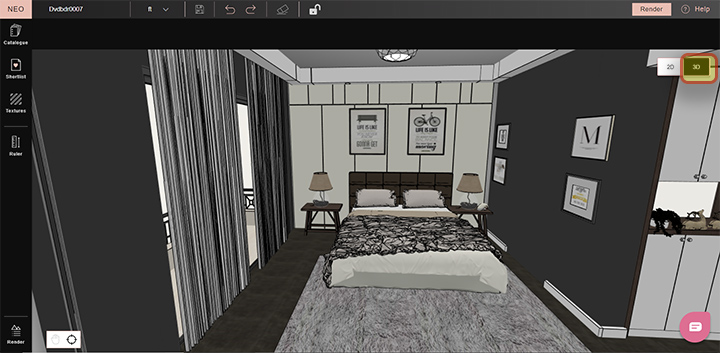

4. Place the selected model on the canvas and click on 3D option displayed on the right hand side of the page.

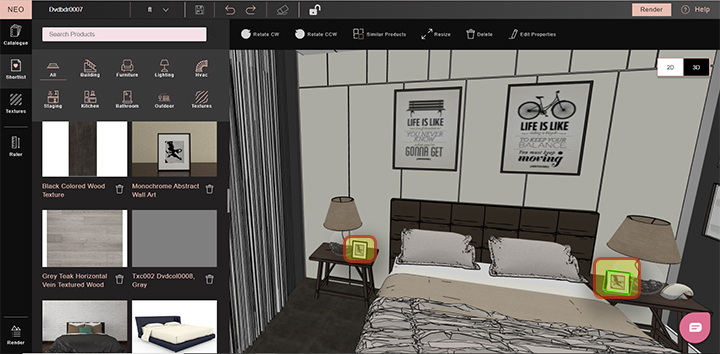

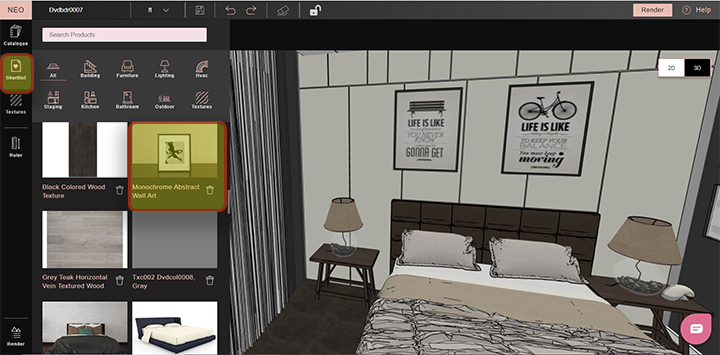

5. You can easily make changes as per your requirement - replace, add or delete items in the floor plan.
3D rendering software

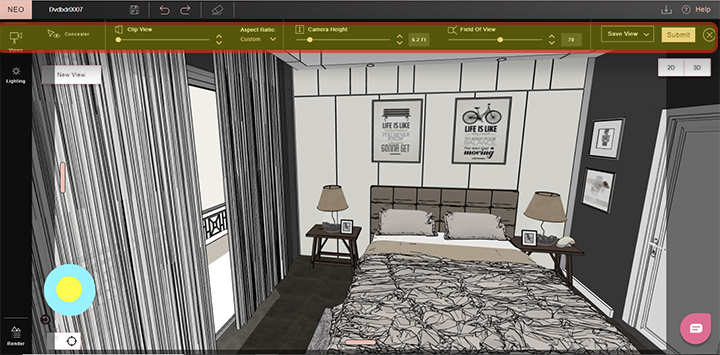

6. Set the final camera view by changing the Aspect Ratio, Field of View, Camera height. You can change the frame by selecting the Clip View tool to select your final frame. The Object Concealer button helps you to remove items from the final camera view.

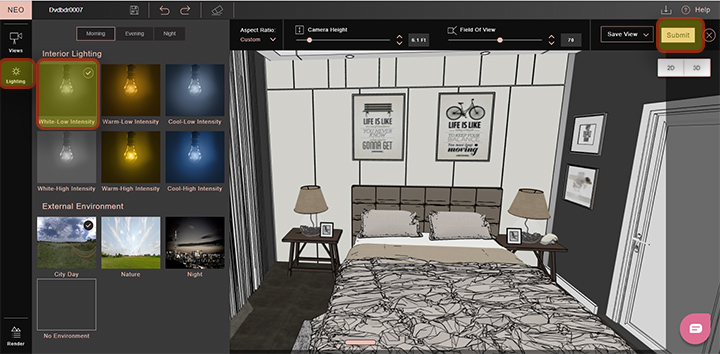

7. Before finalizing your render, click on the Lighting button to select your internal and external lighting from a host of options. For Evening and night mode you can avail the same lighting options.

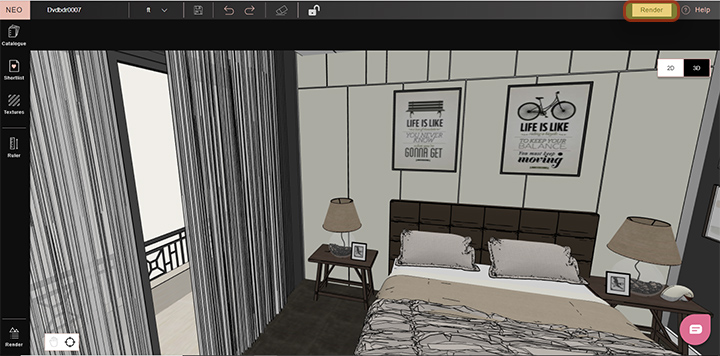

8. Once finalised, click on ‘Render’ displayed on the top right corner of the page.

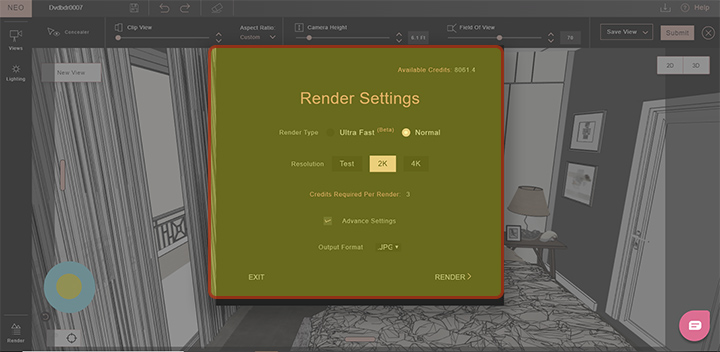

9. A pop titled ‘Export: Render Settings’ will appear on the screen with two options (IMAGE 5)

Ultra-fast render – quick renders: Options available- Test, 2K and 4K

Normal render – high resolution renders: Options available- Test, 2K and 4K

The number of renders which can be taken varies as per subscription.

10. Adjust render settings and click on ‘Render’.

11. Click on ‘Render’ displayed on the left side of the page to check on your render status.

12. Your render will be ready in minutes.

The below video gives an overview on how to render your designs. Start designing using the best rendering software.
