1. To begin designing, login to your Foyr Neo account here:  www.foyr.com



2. You can either go to a previously designed project or start with a new one. ​

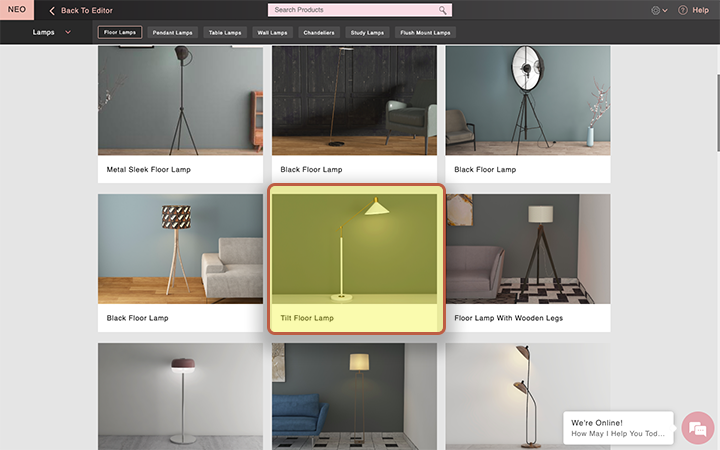

3. Select the lighting fixtures from the catalogue to add to the shortlist.

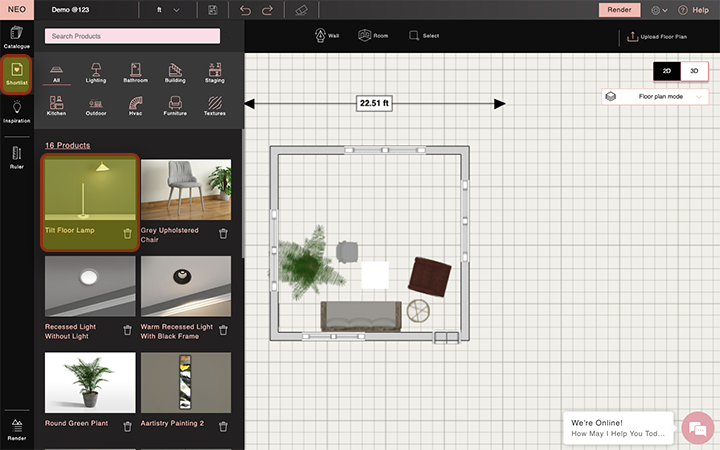

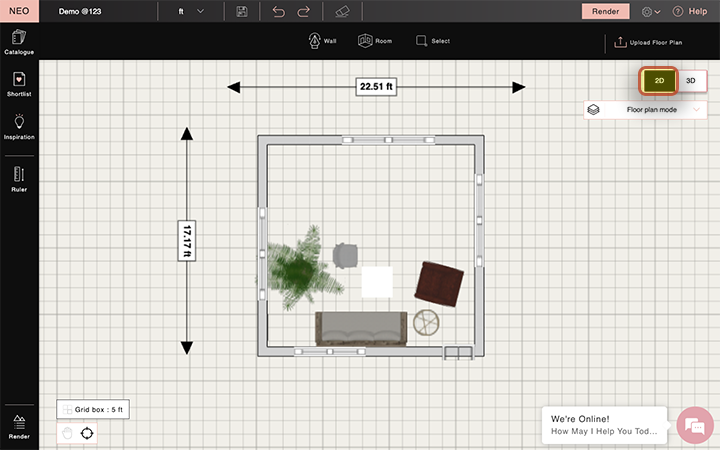

4. To add table, wall and floor lamps in the 2D mode, drag and drop the lamp from the shortlist into the room.

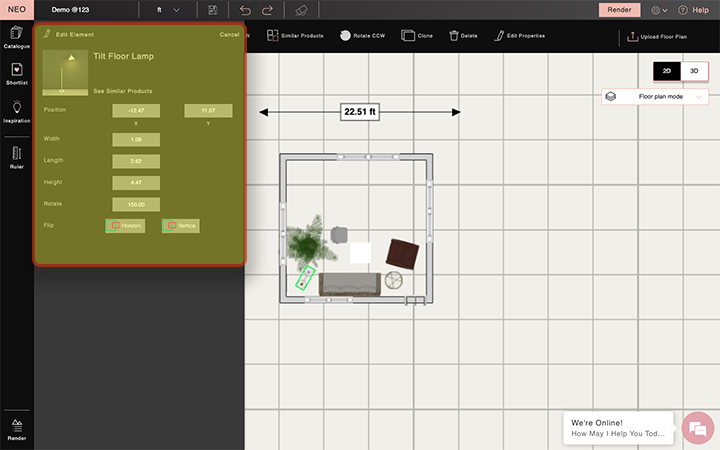

5. In the 2D mode, you can click ‘Edit Properties’ to change the length, width and height of the lamp. ​

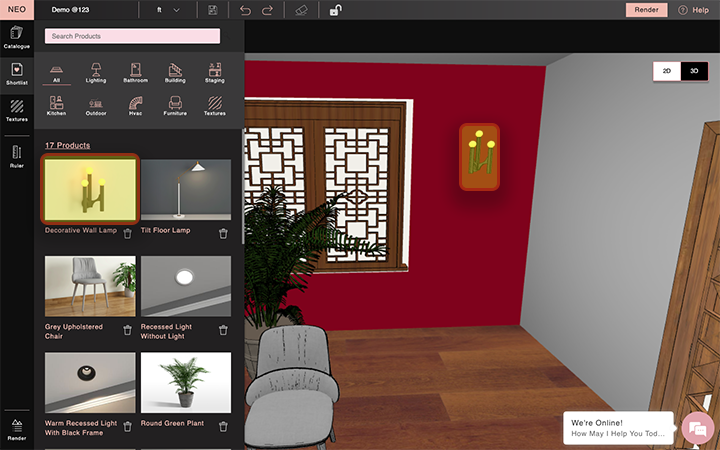

6. In the case of a wall lamp, you can also raise it off the floor at the height you desire. ​

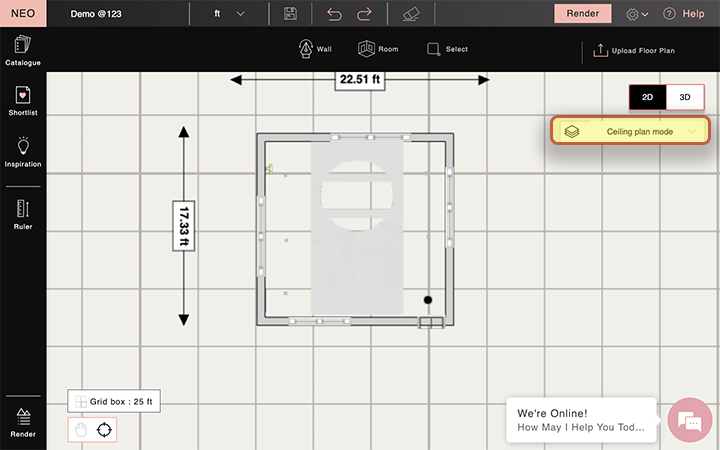

7. To add chandeliers and ceiling lights, switch to the ceiling mode on the top right of the screen. ​

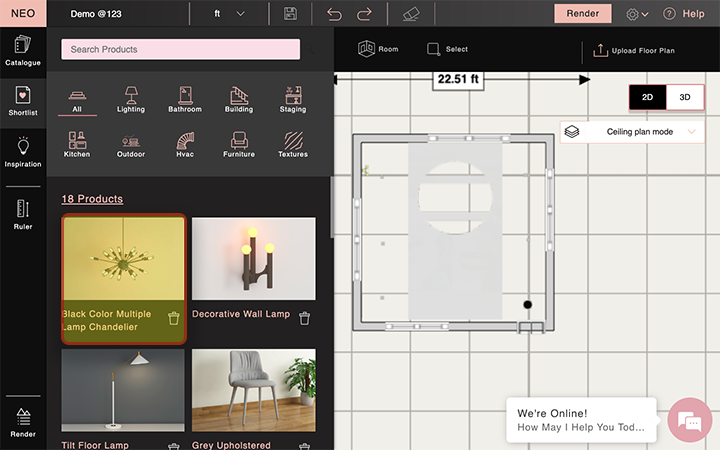

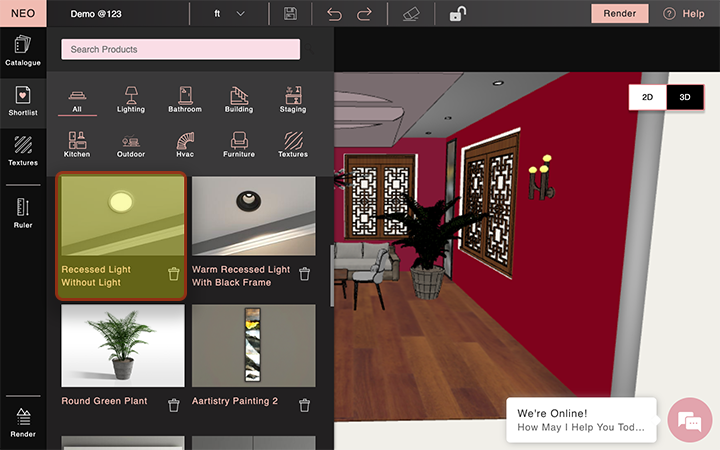

8. Then add the ceiling fixtures and chandeliers by dragging and dropping them from the shortlist. This allows you to measure and place lights precisely where the lights need to be placed.






9. You can also make changes to the properties of the lamps by selecting the product and clicking on ‘Edit Properties’


10. When in 3D mode, selecting and clicking on ‘Edit Properties’ will give you the option of changing the properties of the parts of the object as well.


11. You can make changes to the appearance of the object-the texture tile and offset, by clicking on the object parts in the menu on the left. ​


12. You can also upload textures from your computer.​


13. Clicking on the reset button will restore the appearance of the component to its original state. ​


    This video explains how to take renders in Neo and from 1:08 , you can see how to choose the indoor lighting.



And that’s it, now you know how to set the indoor lighting for your designs on Foyr Neo,the best 3D design software! For any questions, please contact us via the ‘Help’ section within Neo or write to us at connect@foyr.com.
