1. To begin designing, login to your Foyr Neo account here: www.foyr.com

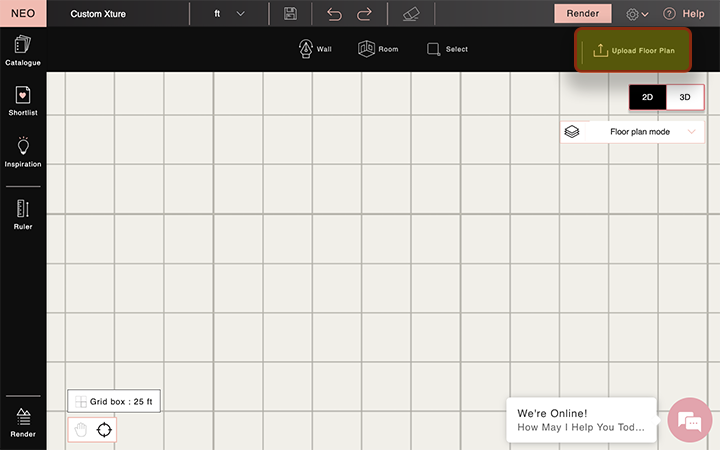

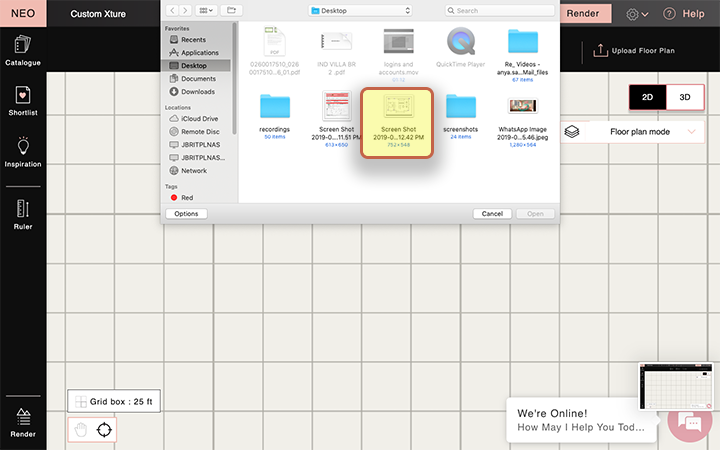

2. Upload your floor plan by clicking on the ‘Upload Floor Plan’ button on the top right of the canvas. ​

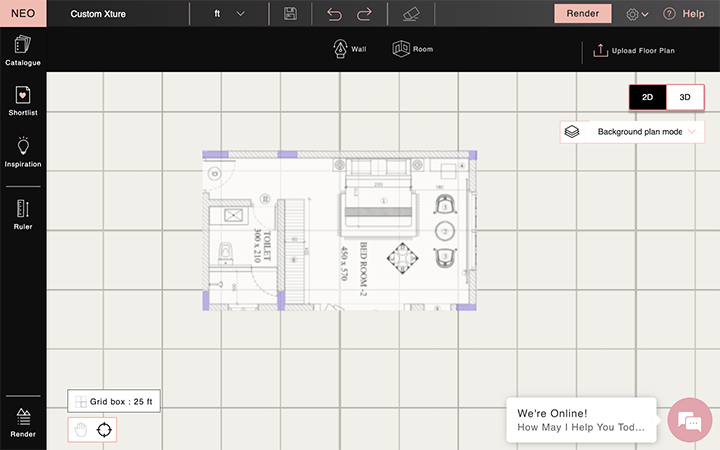

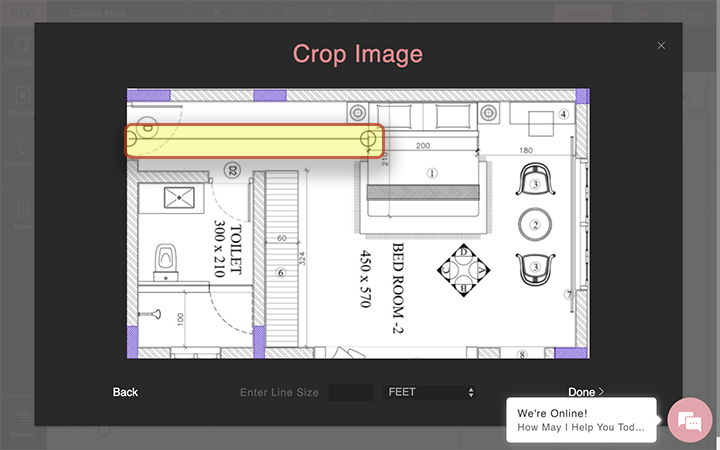

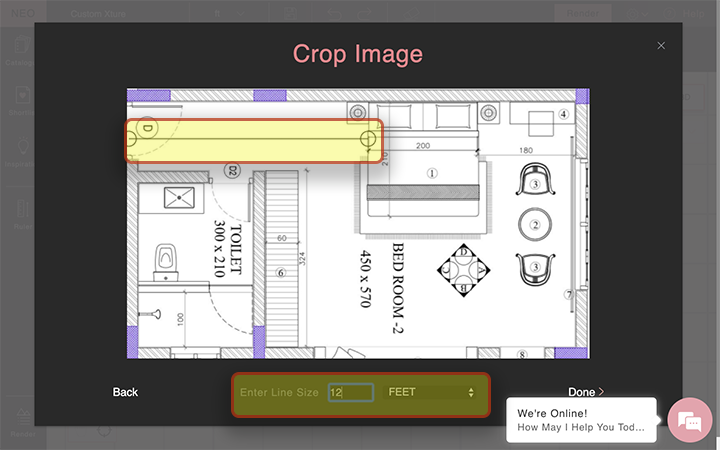

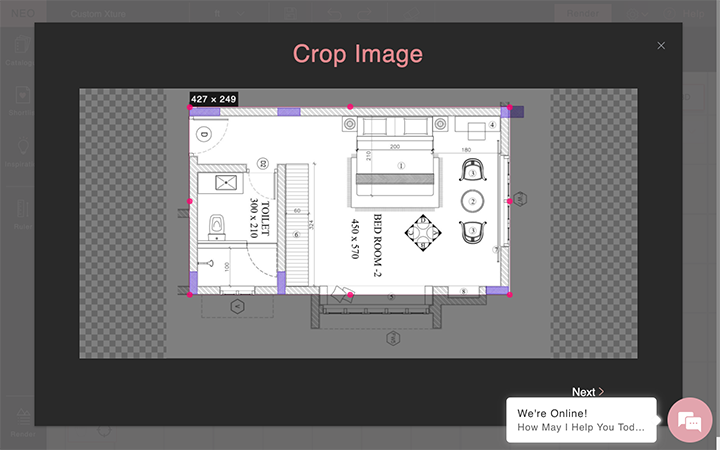

3. Once the uploaded floor plan is uploaded, before drawing over the walls to make the floor plan use the reference lines to set the measurements, in feet, metres and millimetres. This feature allows you floor plan to be adapted into the tool to scale











4. Save progress by clicking on the save icon above the context bar. ​






5. These reference lines will not appear in your final design or in your renders.



   This video talks about how to create a 3D floor plan and you can see how to use the reference line from  0:34 in the video.



And this is how you use reference lines to insert your own 3D floor plan to scale with the exact measurements. For any questions, please contact us via the ‘Help’ section within Neo or write to us at connect@foyr.com.
