To Set Texture Tile Size for Products, Floors and Walls

To Set Texture Tile Size for Products, Floors and Walls

  1. To begin designing, login to your Foyr Neo account here:  www.foyr.com



  2. You can either go to a previously designed project or start with a new one.

    wall textures


  3. Once you have a room design, to change/edit the properties of the floor and walls, press ‘shift’+ left click, for the ‘Edit Properties’ icon to appear on the context bar.

    floor textures


  4. Click on ‘Edit Properties’ to change the texture of the selected surface. To also change the size of the tile, enter size by number along the x and y axis text boxes in the same menu.

    3d floor plan software

  5. To change the texture of the products, click on the product to select it and click on ‘Edit Properties’.

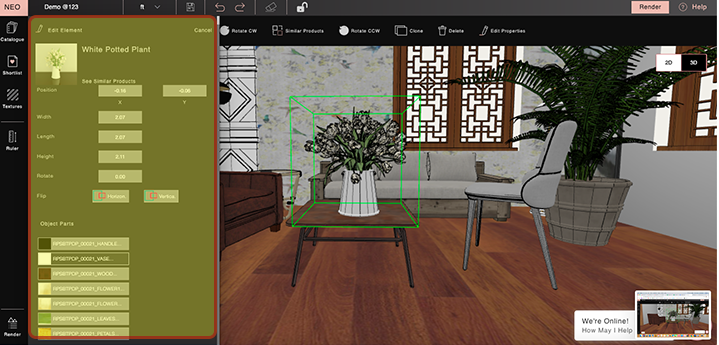

  6. Once the basic appearance of the product has been changed, click on the ‘Object Parts’ button to edit more properties of the object.

    3d floor plan

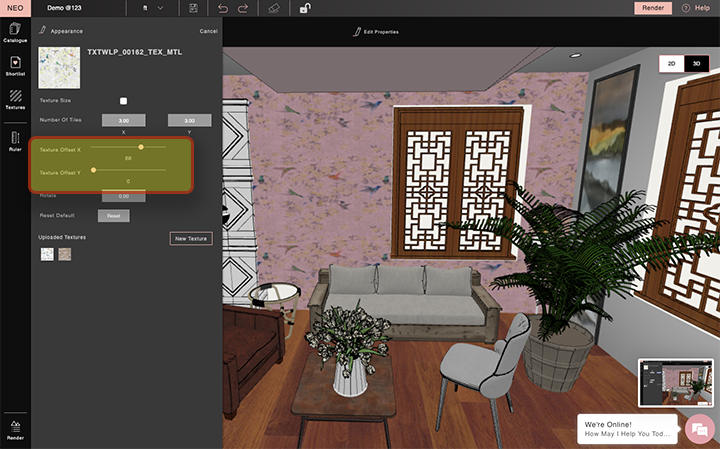

  7. The texture tile and offset can be edited by entering numbers by size in the x and y axis text boxes.

    3d rendering

  8. Any changes made will reflect instantly on the product being edited.

    floor textures

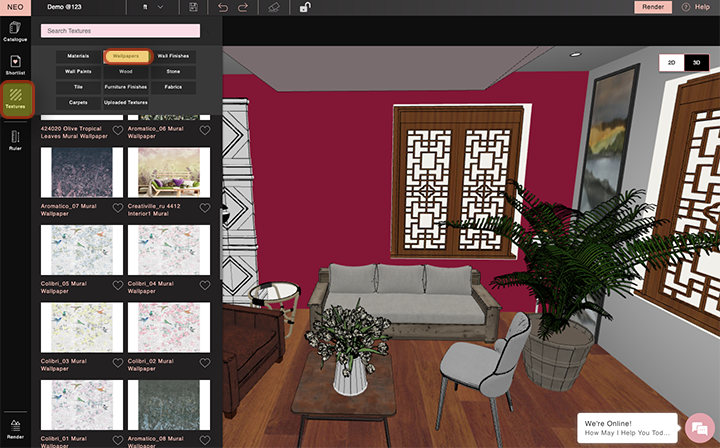

  9. You can also upload wall textures and floor textures or any texture from your PC by clicking on ‘New Textures’ to reflect on your products.




Watch this video to see how to set the texture tile size for products,floors and walls.


Now you know how to change the texture tiles of products, walls and floors in Neo, the room layout tool. For any questions, please contact us via the ‘Help’ section within Neo or write to us at connect@foyr.com.
