1. To begin designing, login to your Foyr Neo account here:  www.foyr.com



2. You can either go to a previously designed project or start with a new one. ​

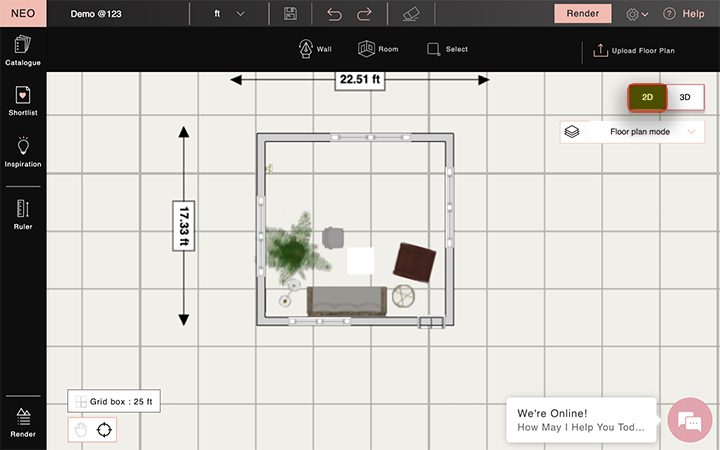

3. If you are designing a new project, start by creating a room. ​

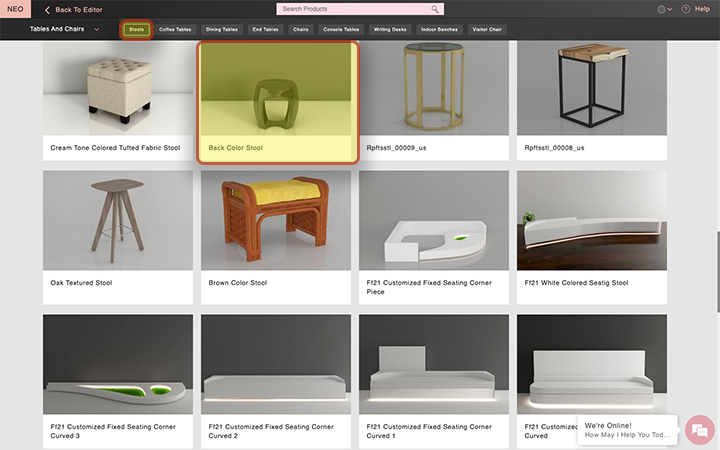

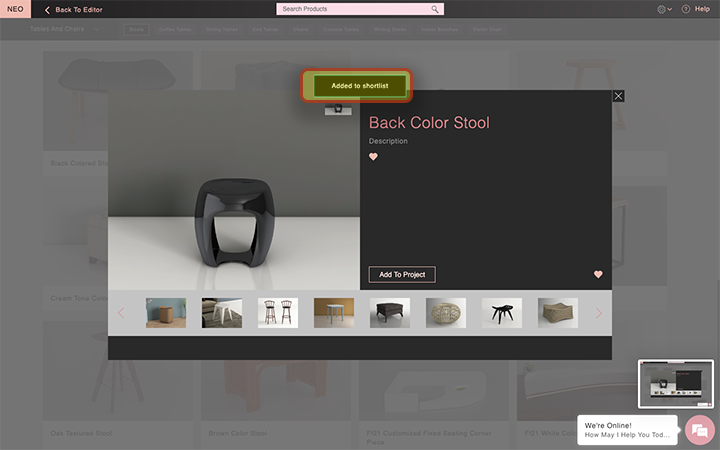

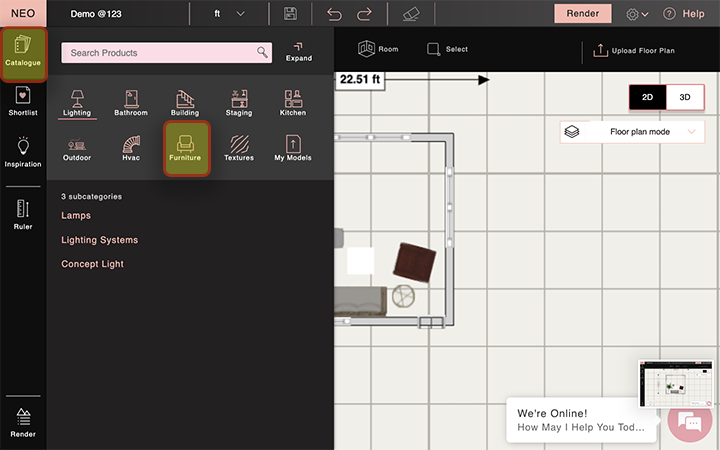

4. Select products that you like from the catalogue to add to the shortlist. ​

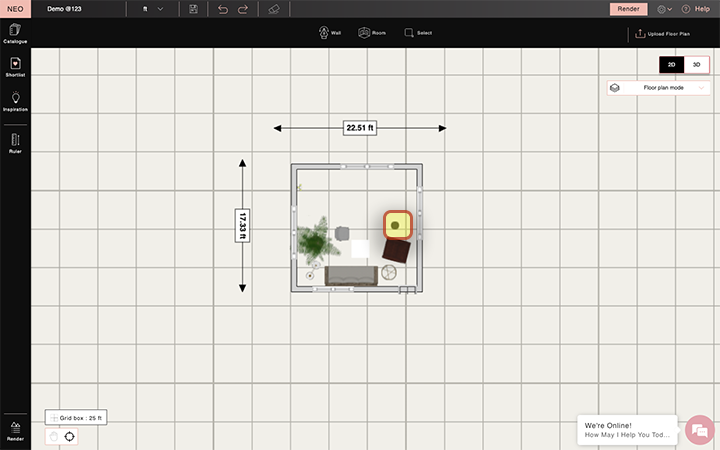

5. Drag and drop from the shortlist into the room. ​







6. You can use the ruler to measure the dimensions of components, distances between objects and even distances from walls.





7. To use the ruler, click on the ‘Ruler’ icon on the menu on the left of the screen. ​

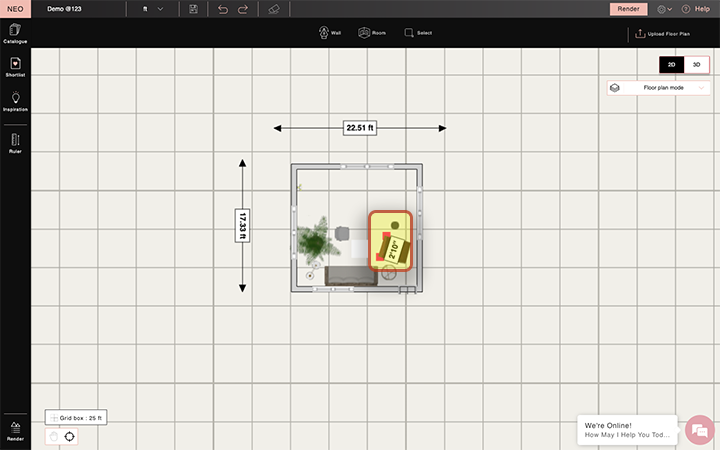

8. Drag your cursor to measure the component or the distance between components.

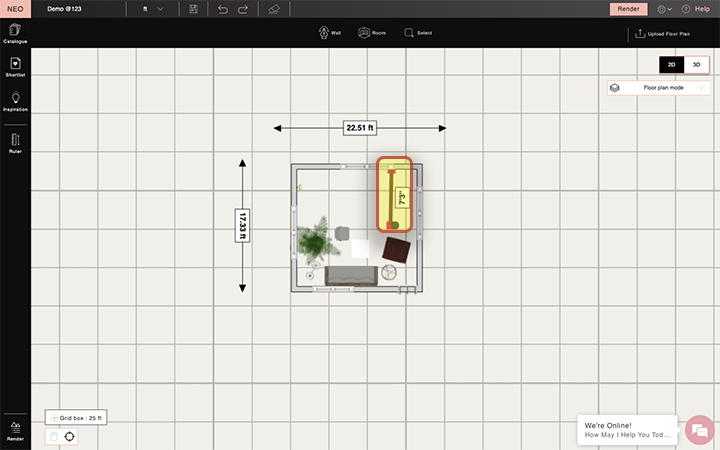

9. The dimensions appear in a box over a brown line with red corners, as shown below.


   This video gives you an overview of all the menus and buttons on Neo and from 4:07 you can see how to use the ruler on your 3D floor plan.






And that is how you use the ruler on Neo, the best 3D design software! For any questions, please contact us via the ‘Help’ section within Neo or write to us at connect@foyr.com.
